Wheat cleaning requirements vary according to the final application. Wheat intended for flour milling, seed preparation, grain storage, or further processing may contain dust, straw, chaff, oversized materials, small particles, and other field impurities.
For these applications, an Air Screen Cleaner for Wheat can be used as an efficient pre-cleaning and screening stage before additional separation equipment. The 5XFS Series Air Screen Cleaner from Hebei Julite Sorting Technology Co., Ltd. is designed for grain and seed cleaning applications and can process wheat as well as other agricultural products.
Rather than treating wheat cleaning as a single separation step, the 5XFS system combines air separation with mechanical screening, allowing different types of impurities to be removed before wheat enters the next processing stage.
Freshly harvested wheat is rarely uniform enough to move directly into every downstream process.
Depending on harvesting, transportation, and storage conditions, incoming wheat may contain:
Dust and fine particles
Straw and chaff
Leaves and lightweight materials
Large foreign materials
Small impurities
Oversized or undersized particles
Other field residues
The purpose of pre-cleaning is not necessarily to complete every separation task in one machine. Instead, it prepares the incoming wheat stream for subsequent equipment.
For a larger wheat cleaning line, an air screen cleaner can therefore serve as an initial cleaning stage before equipment such as a destoner, gravity separator, magnetic separator, grader, or color sorter. Julite's grain and bean cleaning plant follows this type of multi-stage configuration.

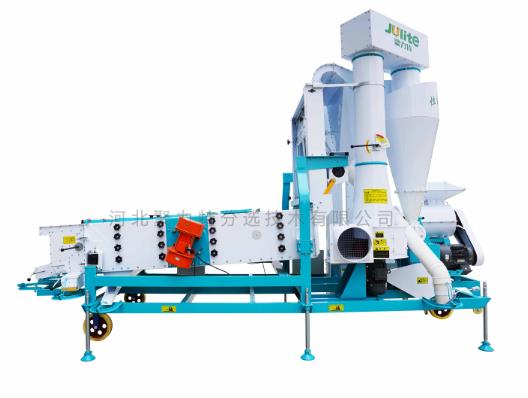

The 5XFS Series is designed around two primary separation methods: air aspiration and screening.
The air-screen section removes lightweight materials from the wheat flow.
Depending on the incoming material, this stage can help separate:
Dust
Chaff
Straw fragments
Lightweight husks
Other light foreign materials
This is particularly useful during the initial cleaning stage because lightweight impurities can be removed before wheat reaches subsequent mechanical separation equipment.
After the air separation stage, wheat passes through the screening section.
Different screen layers can separate materials according to particle size. The 5XFS series can be configured with different numbers of sieve layers, allowing the machine to handle large and small impurities while also classifying material into different particle sizes.
This combination makes the machine more suitable for wheat pre-cleaning than relying only on an air aspiration system.
Wheat used for seed preparation has different requirements from wheat simply entering bulk storage.
Seed processing may require the removal of:
Lightweight impurities
Large foreign materials
Small particles
Unwanted material of different sizes
The Wheat Seed Cleaning Machine can therefore be positioned early in a seed processing line.
After initial air-screen cleaning, the wheat can be transferred to additional equipment when further separation is required.
For example, a seed processing line may include:
Wheat Receiving → Air Screen Cleaner → Destoner → Gravity Separator → Grader → Color Sorter → Packing
The exact equipment combination should depend on the incoming wheat quality, required output, capacity, and final seed specification.
Julite's equipment range includes air-screen cleaners, destoners, gravity separators, grading machines, magnetic separators, color sorters, and other grain-processing equipment.
Wheat entering a flour milling operation needs to be prepared before milling.
The cleaning stage can be used to reduce the amount of foreign material entering downstream equipment. An Air Screen Cleaner for Wheat can be used as part of this initial preparation stage.
For a flour mill, the equipment selection should not be based only on machine capacity. The complete cleaning process should consider:
Wheat variety
Initial impurity level
Particle size distribution
Required throughput
Final flour quality requirements
Available space
Additional cleaning equipment
A larger wheat processing plant may therefore use the 5XFS as one component of a complete cleaning system rather than as the only cleaning machine.
One important consideration when selecting a Wheat Seed Cleaner is screen configuration.
The 5XFS series is available in different layer configurations. Julite lists three-, four-, and five-layer models within the series.
For example:
| Model | Screen Layers | Capacity |
|---|---|---|
| 5XFS-7.5B | 3 | 7.5 t/h |
| 5XFS-7.5C | 4 | 7.5 t/h |
| 5XFS-10B | 3 | 10 t/h |
| 5XFS-10C | 4 | 10 t/h |
| 5XFS-10CD | 5 | 10.5 t/h |
The appropriate configuration depends on the wheat cleaning objective rather than simply choosing the model with the highest number of screens.
For example, a project requiring additional particle-size classification may require a different screen configuration from a basic pre-cleaning application.
Capacity is another key consideration for wheat processing projects.
The standard 5XFS series listed by Julite covers approximately 7.5 to 10.5 t/h, depending on the model and configuration.
For equipment selection, the nominal machine capacity should be considered together with:
Actual wheat characteristics
Moisture condition
Impurity content
Cleaning target
Screen configuration
Feeding system
Downstream equipment capacity
A wheat processing line should normally be designed as a continuous system. If one machine has substantially higher or lower capacity than the rest of the line, it may affect overall processing efficiency.
An air screen cleaner does not perform exactly the same function as every other grain cleaning machine.
An air screen cleaner primarily focuses on light impurities and size-based screening.
A Wheat Destoner is designed for separating stones and other heavy materials according to differences in specific gravity.
For wheat containing significant stone contamination, a destoner may therefore be added after or alongside the initial cleaning stage.
A gravity separator uses differences in specific gravity to separate materials with similar particle sizes but different densities.
This makes it useful for more advanced separation after initial cleaning.
The air screen cleaner is generally more suitable as an initial screening and aspiration stage.
A color sorter identifies and separates material according to optical characteristics.
It is normally used for a later-stage quality separation rather than replacing the basic screening and aspiration process.
This is why complete wheat cleaning systems often use several machines in sequence instead of relying on one machine for every impurity type.
The position of the machine depends on the processing objective.
For a basic wheat pre-cleaning project, a simplified process may be:
Wheat Feeding → 5XFS Air Screen Cleaner → Clean Wheat
For a more complete cleaning system, the process can be expanded:
Wheat Feeding → Air Screen Cleaner → Magnetic Separator → Destoner → Gravity Separator → Grader → Color Sorter → Packing
The actual configuration should be adjusted according to the incoming material and the required final product.
Julite's complete grain and bean cleaning plant demonstrates a similar multi-stage approach, combining air-screen cleaning with magnetic separation, destoning, gravity separation, grading, color sorting, and packing.
The same wheat cleaning equipment does not necessarily have to serve only one type of project.
For seed processing, the cleaning stage can remove foreign materials and help prepare wheat before further grading and separation.
For grain handling facilities, the machine can be used as an initial cleaning stage before storage or additional processing.
For larger projects, the 5XFS can be integrated into a complete grain processing line together with other separation equipment.
Because the 5XFS is not limited to wheat, the same equipment platform can also be applied to other grains and agricultural products when the appropriate screen and air settings are selected. Julite lists wheat, corn, beans, sesame, peanuts, and sunflower seed among its application areas.
Before requesting a quotation, it is useful to provide several basic project details.
Specify the required throughput, such as:
5 t/h
8 t/h
10 t/h
Higher capacity through multiple machines or a complete line
The supplier should understand what the incoming wheat contains.
For example:
Dust
Straw
Chaff
Stones
Large impurities
Small impurities
Other foreign materials
Tell the manufacturer whether the wheat will be used for:
Seed preparation
Flour milling
Food processing
Grain storage
Pre-cleaning
Further grain processing
If the project requires more than basic cleaning, the supplier can evaluate whether additional equipment such as a destoner, gravity separator, magnetic separator, grader, or color sorter should be included.
Hebei Julite Sorting Technology Co., Ltd. develops grain and seed cleaning equipment for agricultural product processing. Its equipment range includes Air Screen Cleaners, Gravity Separators, Destoners, Magnetic Separators, Grading Machines, Polishing Machines, Elevators, and complete grain and seed processing lines.
For wheat projects, Julite can evaluate the processing requirements and recommend a suitable machine configuration based on material type, capacity, impurity conditions, and downstream processing requirements.
This approach is particularly useful for customers looking for a Wheat Cleaning Machine Manufacturer, Wheat Seed Cleaning Machine Supplier, or Air Screen Cleaner Manufacturer in China rather than purchasing a standard machine without considering the complete process.
The main advantage of placing an air screen cleaner early in the process is that it prepares the wheat stream before more specialized separation equipment.
It can handle two basic tasks within one machine:
Air separation: removes lightweight impurities.
Mechanical screening: separates materials according to particle size.
This provides a practical starting point for more complex wheat cleaning systems.
The machine can then be followed by equipment designed for specific separation tasks, depending on the project requirements.
If you are planning a wheat seed cleaning machine, wheat pre-cleaning system, or complete wheat processing line, the equipment should be selected according to actual material conditions rather than capacity alone.
Provide the following information when requesting a solution:
Wheat type
Processing capacity in tons per hour
Main impurities
Final application
Required cleaning level
Available installation space
Existing equipment
Whether a complete processing line is required
Based on these details, a suitable 5XFS Air Screen Cleaner configuration and additional cleaning equipment can be considered.
Julite's current 5XFS range includes models from 7.5 t/h to approximately 10.5 t/h, with different sieve-layer configurations for different processing requirements.
Yes. The 5XFS Series Air Screen Cleaner is listed by Julite for wheat as well as maize, green mung bean, and other agricultural products.
It can remove lightweight impurities through air separation and larger or smaller materials through screening. The exact separation result depends on the wheat condition, screen configuration, and operating settings.
Not always. If the wheat contains stones, density-related impurities, metal contamination, or color defects, additional equipment such as a destoner, gravity separator, magnetic separator, or color sorter may be required.
Julite currently lists 5XFS models with capacities of approximately 7.5, 10, and 10.5 t/h, depending on the model and configuration.
Yes. The machine can be used as an initial cleaning stage in wheat seed processing before additional grading or separation equipment.
Yes. Julite's product range includes multiple types of grain cleaning and separation equipment that can be combined into complete processing systems according to project requirements.
A 5XFS Air Screen Cleaner for Wheat can provide a practical first-stage solution for wheat seed cleaning and grain pre-cleaning. By combining air separation with screening, the machine can prepare wheat for subsequent processing while allowing the cleaning line to be expanded with additional separation equipment when required.
For wheat seed preparation, flour milling, grain handling, and other agricultural processing applications, the appropriate configuration should be selected according to throughput, impurity conditions, screen requirements, and the final processing objective.
Hebei Julite Sorting Technology Co., Ltd. can provide air-screen cleaning equipment and complete grain and seed processing solutions for wheat and other agricultural products.
