Large grain processing facilities often handle more than one type of agricultural product. A cleaning system may need to process wheat, corn, sesame, sorghum, or other grains while dealing with different levels of dust, chaff, straw, damaged kernels, and other impurities.

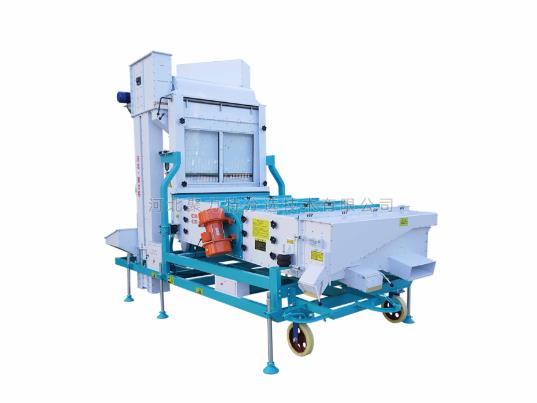

The 5XFZ-40Z & 5XFJ-20Y Corn and Wheat Combination Cleaning Machine is designed as a multi-function grain cleaning solution that combines winnowing, selection, and grading in one processing system.
According to Julite's product information, the equipment can be used for different grain and seed materials, with a reference capacity of up to 30 t/h for wheat and 10 t/h for sesame. It is designed to remove dust, chaff, straw, injured seeds, sprouted seeds, insect-damaged grains, mildew grains, and other light impurities in the cleaning process.
For grain processors looking for a Corn Cleaning Machine, Wheat Cleaning Machine, or flexible Grain Cleaning Equipment, this combination system provides a different approach from using a single-purpose cleaner for every crop.
The 5XFZ-40Z & 5XFJ-20Y is a Combination Grain Cleaning Machine developed for grain and seed processing applications.
Instead of focusing on only one separation method, the system combines several cleaning functions, including:
Winnowing
Grain selection
Grain grading
Light impurity removal
Particle-size classification
This configuration allows incoming grain to pass through several cleaning stages within an integrated equipment solution.
It is particularly suitable for processing materials containing a relatively high amount of impurities while having comparatively limited moldy material.
Different impurities behave differently during grain cleaning.
Dust and chaff are lightweight, while damaged or undersized kernels may have different physical characteristics from good grains. Large foreign materials may also differ significantly in size.
Using only one separation method can therefore leave certain impurities in the product.
A combination system approaches the material from several separation directions.
Airflow separates lightweight materials such as dust, chaff, and straw from heavier grain.
The cleaning process further separates unwanted material from the usable grain stream.
The cleaned material can then be classified according to particle size.
This combination is particularly useful for processing plants that need more than basic pre-cleaning.
Wheat is one of the main applications for this equipment.
Incoming wheat can contain:
Dust
Chaff
Straw
Damaged kernels
Sprouted kernels
Insect-damaged grains
Mold-affected grains
Other field impurities
The Wheat Cleaning Machine is designed to handle these types of materials through a combination of air separation, selection, and grading.
Julite lists a reference processing capacity of up to 30 t/h for wheat for this combination machine.
This makes the equipment relevant to larger grain handling and wheat processing projects where throughput is an important consideration.
Corn and maize processing facilities also require effective removal of foreign materials before further processing.
Depending on harvesting and storage conditions, raw corn may contain:
Corn husks
Dust
Straw
Broken material
Damaged kernels
Sprouted kernels
Insect-damaged kernels
Other foreign materials
A Corn Cleaning Machine can be positioned at the front end of a corn processing line to reduce the impurity load before subsequent processing.
For facilities handling multiple crops, the combination design can also provide greater flexibility than equipment dedicated to only one grain.
One reason to consider a combination system is the ability to handle different agricultural materials.
Julite lists applications across:
Wheat
Corn and maize
Sesame
Beans
Peanuts
Sunflower seeds
The company's product range is also structured around different grain and seed applications rather than a single crop.
For a processing company handling seasonal crops, this flexibility can be useful when equipment needs to support different production schedules during the year.
Processing capacity becomes increasingly important as grain plants move from small-batch production to continuous operation.
The 5XFZ-40Z & 5XFJ-20Y combination is listed with a reference capacity of 30 t/h for wheat.
A high-throughput Wheat Grain Cleaning Machine can help reduce bottlenecks when the upstream receiving system and downstream processing equipment are designed for similar production rates.
However, actual capacity should be evaluated according to:
Grain type
Moisture
Initial impurity content
Required cleaning level
Material characteristics
Feeding conditions
Final product requirements
The nominal capacity should therefore be considered as a starting point for equipment selection rather than a universal operating result.
The same equipment can also be applied to sesame processing.
Julite lists a reference capacity of 10 t/h for sesame for the 5XFZ-40Z & 5XFJ-20Y system.
Sesame cleaning can involve lightweight materials, dust, husks, immature seeds, and other foreign materials.
The air-cleaning and grading functions can help prepare sesame before additional processing stages.
For projects focused specifically on sesame, Julite also provides dedicated Sesame Cleaning Plant solutions and other grain-cleaning equipment.
The equipment is designed for grain containing a relatively high level of impurities.
The product information specifically mentions removal of:
Dust and Chaff
Lightweight materials can be separated through the winnowing process.
Straw
Agricultural residues can be removed from the grain stream.
Injured Seeds
Damaged kernels can be separated during the cleaning process.
Sprouted Seeds
Sprouted material can be removed as part of the selection process.
Insect-Damaged Grains
Grains affected by insects can be separated from usable material.
Mildew Grains
The equipment is also designed to handle certain mold-affected grains, although the appropriate processing configuration depends on the raw material condition.
The machine is intended for grain with relatively high impurity content and comparatively low levels of moldy material.
A single-purpose grain cleaner can be appropriate when the incoming material and cleaning requirement are relatively simple.
A Combination Cleaning Machine becomes more relevant when a project requires multiple functions.
| Requirement | Single Cleaning Machine | Combination Cleaning Machine |
|---|---|---|
| Light impurity removal | Suitable | Suitable |
| Winnowing | Depending on model | Included |
| Grain selection | Limited by machine type | Integrated |
| Particle grading | Depending on model | Included |
| Multiple grain applications | Model dependent | More flexible |
| High-volume processing | Model dependent | Designed for larger projects |
| Integrated processing | Limited | More comprehensive |
The choice should be based on the material, capacity, and required final product rather than simply the number of machine functions.
The processing sequence can be understood as several connected stages.
Raw grain enters the cleaning system through the feeding section.
The feeding system should provide a stable material flow to maintain consistent cleaning performance.
Airflow separates lightweight impurities from the heavier grain.
This stage focuses on materials such as dust, chaff, straw, and other light foreign matter.
The material then goes through further separation to remove unwanted grain fractions and impurities.
The cleaned grain can be classified according to particle size.
This can help prepare different grain grades for storage, further processing, or commercial distribution.
The 5XFZ-40Z & 5XFJ-20Y system can be considered for several types of processing facilities.
Pre-cleaning can reduce the amount of foreign material entering storage systems.
Plants handling multiple agricultural products can use a flexible cleaning system for different processing requirements.
The equipment can be used as part of an upstream cleaning and grading process before additional seed-processing equipment.
Processors handling wheat, corn, sesame, and other grains may use combination cleaning equipment as part of a larger production line.
The combination cleaner can be used as one part of a complete grain processing system.
A simplified process may look like:
Raw Grain → Feeding → Combination Cleaning → Grading → Further Processing → Packing
For a more complex grain processing project, additional equipment may be added.
For example:
Raw Grain → Air Cleaning → De-stoning → Magnetic Separation → Gravity Separation → Grading → Color Sorting → Packing
The final configuration depends on the material and required product quality.
Julite's current equipment portfolio includes air-screen cleaners, gravity separators, de-stoners, magnetic separators, vibration graders, polishing machines, color sorters, elevators, packing machines, and complete grain and seed processing plants.
A combination machine can be considered when several conditions occur at the same time.
If incoming grain contains substantial dust, chaff, straw, damaged kernels, and other foreign materials, several cleaning functions may be required.
Large processing plants need equipment that can maintain a stable material flow.
A facility processing wheat, corn, sesame, or other grains may benefit from a more flexible equipment configuration.
If the final product needs to be classified by particle size, grading should be included in the processing design.
Combining several functions into one equipment solution may reduce the number of independent machines required in certain processing layouts.
Before selecting a Grain Cleaning Machine, it is important to define the actual processing requirements.
Tell the supplier whether you are processing:
Wheat
Corn
Sesame
Sorghum
Beans
Peanuts
Sunflower seeds
Other agricultural products
Typical project requirements may range from small-scale processing to more than 20 t/h.
Julite's processing demand survey currently categorizes requirements into 1–5 t/h, 6–10 t/h, 11–15 t/h, and 16–30 t/h ranges.
The impurity profile is equally important.
Common examples include:
Dust
Leaves
Sticks
Stones
Soil blocks
Moldy grains
Large impurities
Small impurities
Julite uses these types of material conditions when evaluating grain-processing requirements.
The final application may be:
Seed processing
Grain storage
Oil processing
Food processing
Pre-cleaning
Commercial grain production
The equipment configuration can then be matched to the actual processing objective.
Hebei Julite Sorting Technology Co., Ltd. provides grain and seed cleaning equipment for agricultural processing projects.
Its current equipment portfolio includes Air-Screen Cleaners, Air-Screen Cleaners with Gravity Tables, De-stoners, Gravity Separators, Magnetic Separators, Grading Machines, Polishing Machines, Elevators, Production Lines, Composite Products, Packing Machines, and Color Sorters.
The 5XFZ-40Z & 5XFJ-20Y Corn and Wheat Combination Cleaning Machine is one of the company's composite equipment solutions for grain and seed processing.
For customers looking for a Grain Cleaning Machine Manufacturer, Corn Cleaning Equipment Supplier, Wheat Cleaning Machine Supplier, or Grain Cleaning Equipment Manufacturer in China, the project can be evaluated according to material, capacity, impurities, and final processing requirements.
There is no single grain cleaning configuration that is suitable for every processing plant.
Two wheat processing projects may have the same target capacity but different impurity profiles.
For example, one plant may mainly need dust and chaff removal, while another may also need grading, density separation, stone removal, or optical sorting.
The right approach is therefore to start with the raw material and final product requirements.
This allows the cleaning process to be designed around the actual production line instead of selecting equipment only according to a general capacity number.
When requesting a quotation for the 5XFZ-40Z & 5XFJ-20Y Combination Cleaning Machine, it is useful to provide:
Grain type
Required capacity
Initial impurity percentage
Main impurity types
Final product requirements
Whether grading is required
Existing processing equipment
Available installation space
Destination country
With this information, a grain cleaning equipment supplier can evaluate whether a combination cleaner is suitable or whether additional equipment should be included.
For larger projects, the machine can also be considered together with Julite's other cleaning and processing equipment.
It is a combination grain cleaning machine designed for agricultural products such as wheat, corn, sesame, and other grains and seeds. It integrates winnowing, selection, and grading functions.
Julite lists a reference capacity of up to 30 t/h for wheat for this combination cleaning machine. Actual processing capacity depends on material and operating conditions.
Yes. The machine is listed as a Corn and Wheat Combination Cleaning Machine and is designed for grain and seed processing applications.
Yes. Julite lists a reference capacity of approximately 10 t/h for sesame for this machine.
The equipment is designed to remove dust, chaff, straw, injured seeds, sprouted seeds, insect-damaged grains, mildew grains, and other light impurities.
Yes. The product information states that the system integrates winnowing, selection, and grading.
Yes. Julite offers additional equipment including de-stoners, gravity separators, magnetic separators, graders, color sorters, elevators, packing machines, and complete grain and seed processing lines.
The 5XFZ-40Z & 5XFJ-20Y Corn and Wheat Combination Cleaning Machine is designed for grain processors that need more than basic impurity removal.
By combining winnowing, grain selection, and grading, the system can handle multiple cleaning requirements within one integrated solution. It can be applied to wheat, corn, sesame, and other agricultural products, with Julite listing reference capacities of up to 30 t/h for wheat and 10 t/h for sesame.
For grain processing plants, seed processors, agricultural product companies, and commercial grain facilities, equipment selection should be based on the material, impurity profile, required capacity, and final product requirements.
Hebei Julite Sorting Technology Co., Ltd. provides grain cleaning equipment and complete processing solutions for different agricultural products and production requirements.
