5XFS-10CS Air-Screen Cleaner (with Dual Dust)

Feature

It can clean light impurities through vertical air screen and the vibration sieve can clean big and small impurities.

The material can be classified into big, medium and small particles with different layers of sieves.

It is widely used in seed processing and agricultural product processing industry.

Product Advantages

1. Secondary Dust Removal: This machine incorporates secondary dust removal, effectively separating chaff, straw, and dust from light impurities.

2. Stable and Reliable: The entire machine is bolted together, preventing welding deformation.

3. Crushing-Free Elevator: A specially designed elevator ensures ultra-low speed and zero crushing.

4. Flexible Use: Can be used mobilely or stationarily.

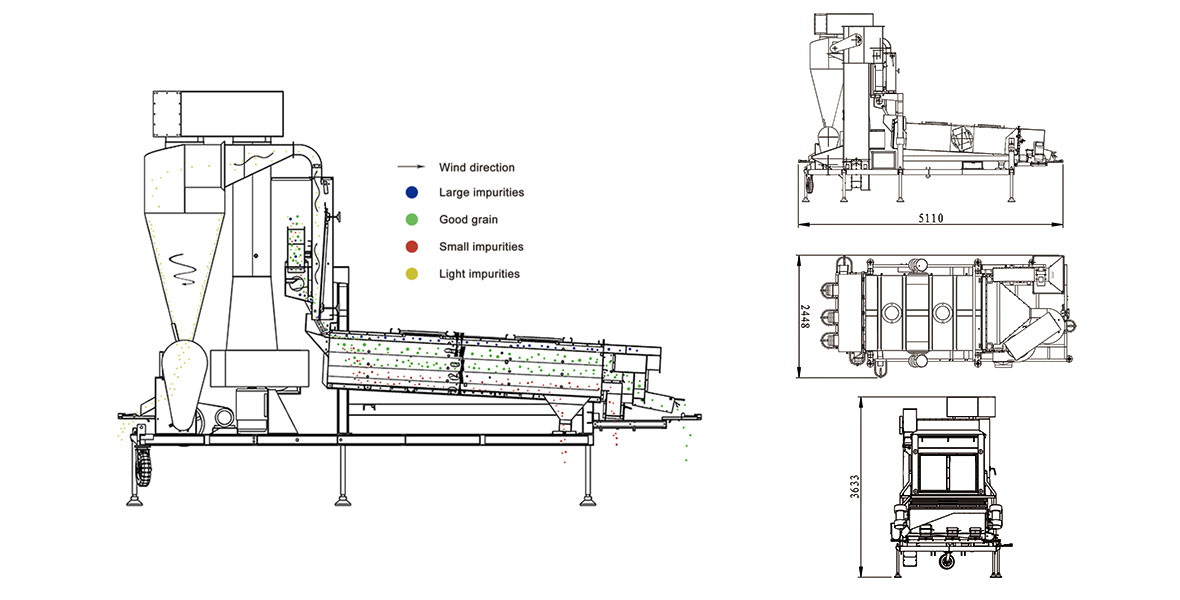

Working Principle

Materials enter the bulk grain bin via an elevator and are evenly dispersed into a vertical air screen. Under the action of airflow, light impurities are separated.

These impurities are filtered by a cyclone dust collector and discharged through a rotary ash discharge valve.Empty grains and straw are discharged through a secondary settling device.

The remaining material enters the screen box, where precision perforated screens of different specifications are adjusted according to the material's dimensions to remove large and small impurities.

Simultaneously, the finished product is separated into large, medium, and small particles by increasing or decreasing the number of screen layers.

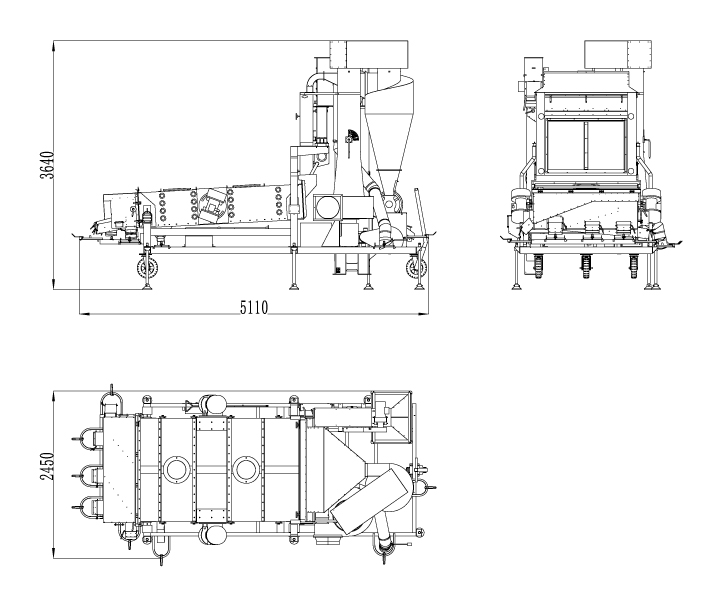

Specification
