This Blow Type Specific Gravity Cleaning Machine is to produce proportion segregation phenomenon under stress of aerodynamic and vibration friction of graininess material.
1.By adjusting wind pressure, amplitude and other parameters, larger and smaller proportion material will be separated.
2.This machine is to remove budding seed, blighted seed, damaged seed (by insect), and other light impurities from sesame, maize, paddy, sunflower seed, wheat, legume, etc.
3.At the same time, there is an angle on the right of vibration surface; the stone can be separated.
| Model | 5XZ-15 Gravity Separator |
| Sieve SIze | 4410mmx1750mm |
| Power(kw) | 24.95KW |
| Capacity(t/h) | 10-15 |
| Weight(kg) | 3500 |

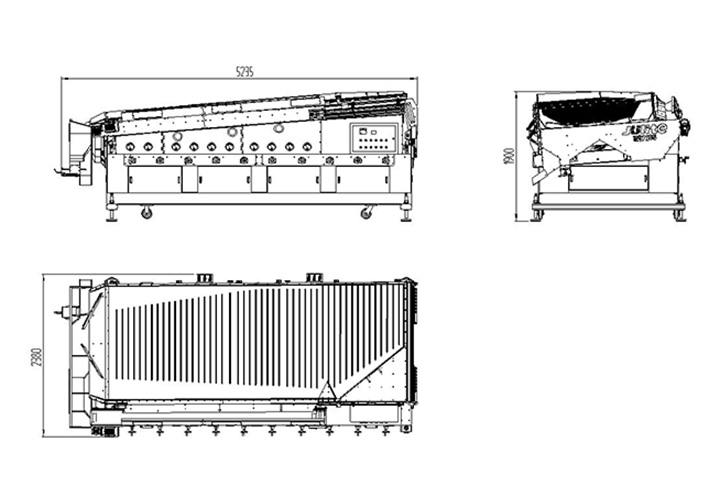

| Overall Size L×W×H(mm) | 5235mmx2380mmx1900mm |
| Voltage | 380V, 50HZ, three phases (must be three phases, voltage can be design to others) |
