5XZ-8 Gravity Separator

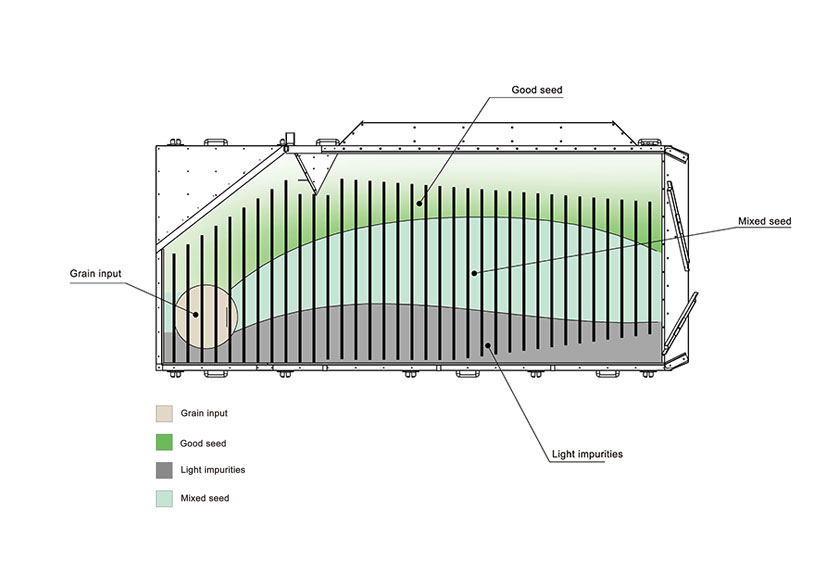

This Blow Type Specific Gravity Cleaning Machine is to produce proportion segregation phenomenon under stress of aerodynamic and vibration friction of graininess material.

Product Details


Feature

1.By adjusting wind pressure, amplitude and other parameters, larger and smaller proportion material will be separated.

2.This machine is to remove blighted seed, budding seed, damaged seed (by insect), and other light impurities from wheat, corn, paddy, sunflower seed, melon seed, legume, etc.

3.At the same time, there is an angle on the right of vibration surface; the stone can be separated.

Specification

Model5XZ-8 Gravity Separator
Sieve SIze1380mmx3150mm
Power(kw)Two motors, seven fans
     Fan motor: 11KW
     Vibration motors: 2.2KW
     Side grain outlet motor:1.1 kW
   Total: 14.3KW
Capacity(t/h)7-8(based on beans and white beans)
Weight(kg)1680

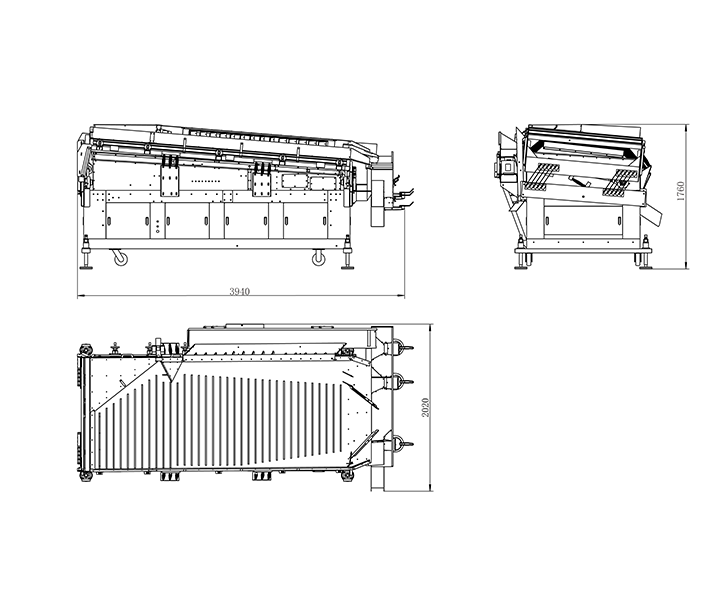

Overall Size L×W×H(mm)3870mmx2000mmx1700mm
Voltage380V, 50HZ, three phases (must be three phases, voltage can be design to others)
