Maize cleaning machine consists of bucket elevator, dust catcher, enclosed rotary unloading valve, vertical screen, and vibration grader.

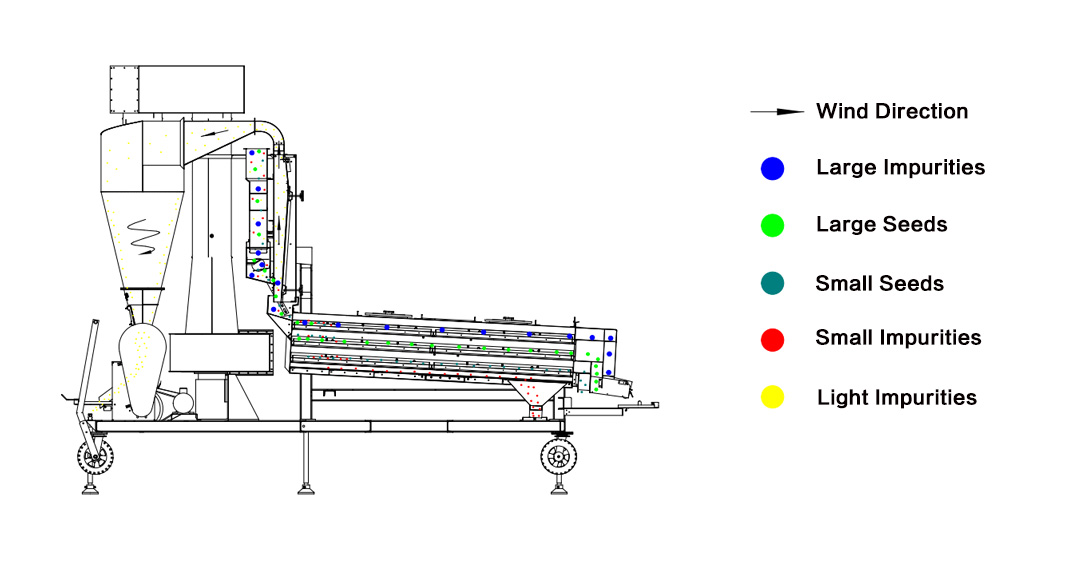

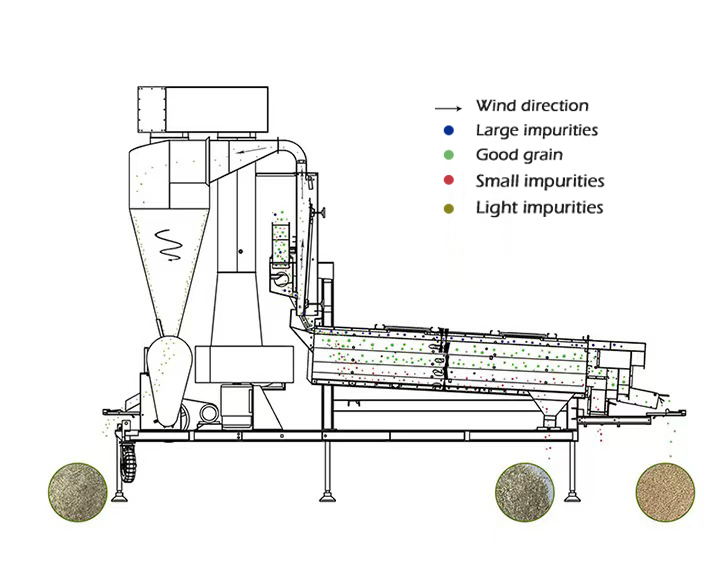

Maize cleaning machine can clean light impurities through vertical air screen and the vibration sieve can clean big and small impurities.
The material can be classified into big, medium and small particles with different layers of sieves.
It is widely used in seed processing and agricultural product processing industry.
| NAME | MODEL | LAYER | SIEVE SIZE (mm) | CAPACITY (t/h) | POWER (kw) | WEIGHT (t) | OVERALL SIZEL x W x H(mm) |
| Air Screen Cleaner | 5XFS-7.5B | THREE | 1250×2400 | 7.5 | 7.9 | 1.82 | 5110x2130x3470 |
| 5XFS-7.5C | FOUR | 1250×2400 | 7.5 | 7.9 | 1.86 | 5110x2130x3470 | |
| 5XFS-10B | THREE | 1500×2400 | 10 | 10.3 | 2.01 | 5110x2448x3633 | |
| 5XFS-10C | FOUR | 1500×2400 | 10 | 10.3 | 2.06 | 5110x2448x3633 | |
| 5XFS-10CD | FIVE | 1500×2400 | 10 | 10.5 | 2.56 | 5200x2430x3650 |
