5XFJ Series Vibration Grader

The material can be classified into big, medium and small size with different layers of sieves.

Product Details



Feature

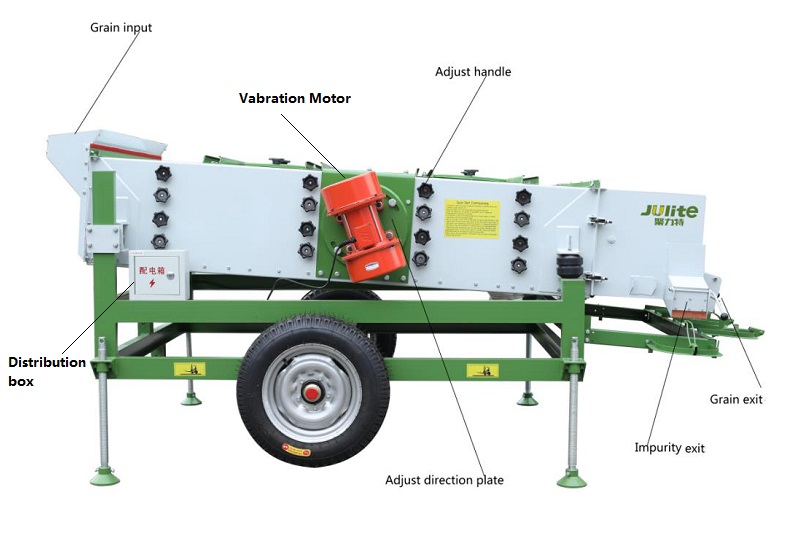

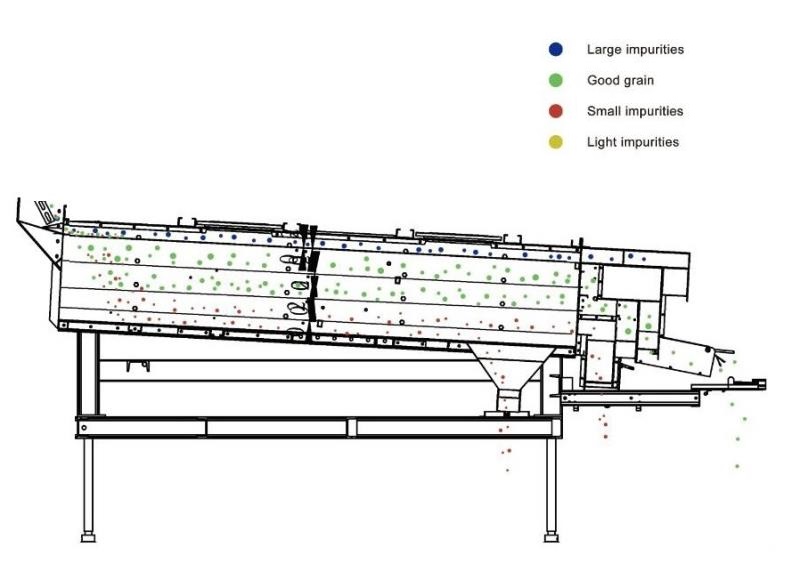

The vibration sieve can separate big and small impurities from all kinds of grain and seeds.

The material can be classified into big, medium and small particles with different layers of sieves.

It is widely used in seed processing and agricultural product processing industry.

Durable, Stable and Easy to handle.

Specification:

Vibration GraderModelLayer Sieve Surface
   Area (mm)
Power
   kW
Capacity
   t/h
Weight
   Kg
Overall Size
   L×W×H mm
5XFJ-7.5BThree1250x24001.57.510403500×2050×1880
5XFJ-7.5CFour 1250x24001.57.510803500×2050×1880
5XFJ-10BThree1500x24001.51011603500×2300×1880
5XFJ-10CFour 1500x24001.51012103500×2300×1880
5XFJ-10DFive1500x24001.51013603500×2300×1740
5XFJ-20YDouble screen box1500x24001.515-2013603500×2300×1740
Longer Vibration Grader5XFJ-5BCThree1000x30001.1510203950×1840×1860
5XFJ-5CCFour 1000x30001.1511003950×1840×1860
5XFJ-7.5BCThree1250x36001.57.512004630×2050×2050
5XFJ-7.5CCFour 1250x36001.57.513604630×2050×2050
