5XFS-10T Air Screen Dust Removal System

Features

1. Vertical air screen separates grains based on the aerodynamic characteristics and the different critical velocities of grains and impurities, by adjusting the airflow speed.

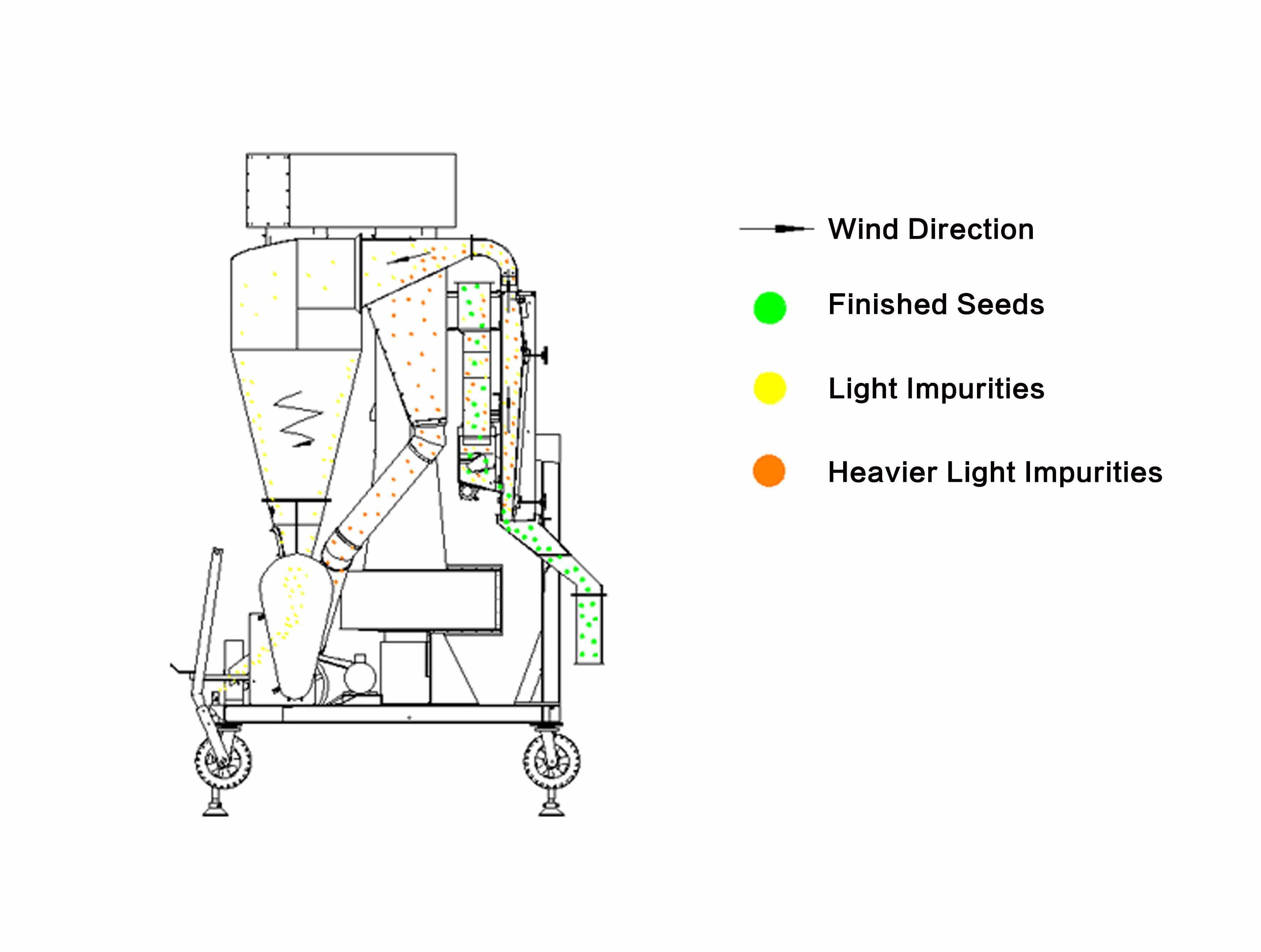

2. The process flow is as follows: raw grains enter the bulk grain bin via an elevator, are then evenly fed into the vertical air separator, and after air separation, light impurities are sucked into a spiral dust collector for centralized discharge.

3. The finished grain is discharged through the outlet to proceed to the next process.

Advantages

1. Excellent removal of light impurities, resulting in high finished grains cleanliness;

2. Can be flexibly selected with an elevator or other feeding device according to the type of grains;

3. The air volume of the air screen is adjustable to adapt to various grains;

4. The bulk grain bin is equipped with a micro-vibration motor, ensuring stable performance and uniform grains distribution;

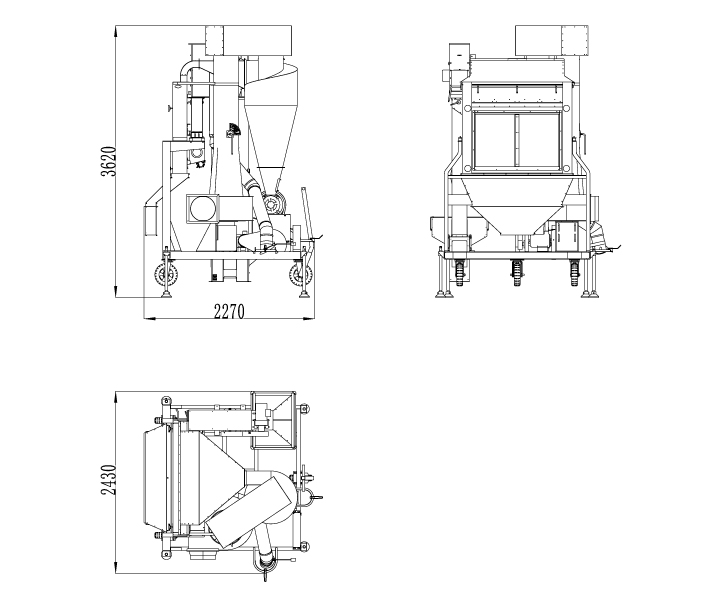

Specification
