5XFJ-40A Vibration Grader Advantage
1.The vibration grader is used with 4 layers of sieves in parallel, and the sieving rate is higher, which can greatly increase the capacity while ensuring the effect of removing impurities;
2. Small footprint and space saving;
3. The whole machine has compact structure, simple operation and good stability.

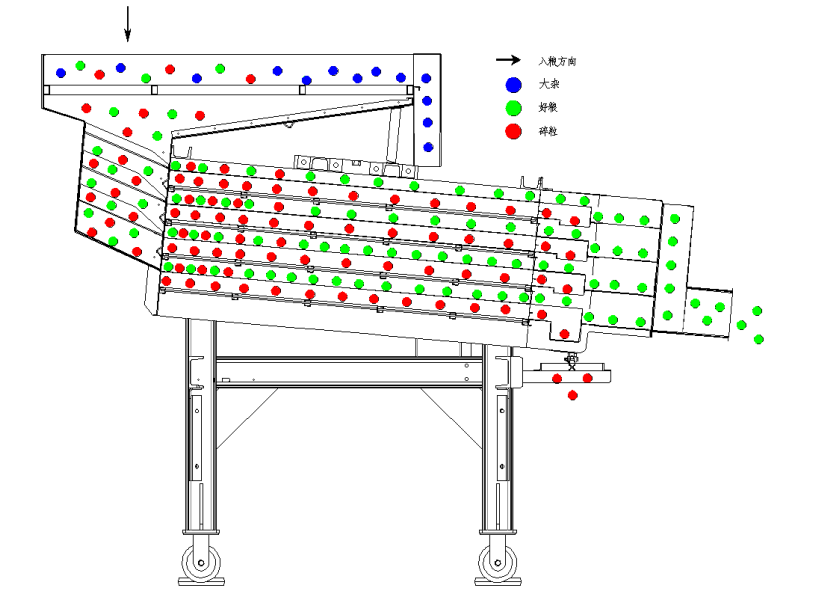

Working principle
5XFJ-40A Vibration Grader is a large-capacity vibrating grading machine used for removing large impurities and broken grains mixed in materials. The materials which is processed by the 5XFZ-40Z double gravity table cleaner, will enters the 5XFJ-40A Vibration Grader to remove the large impurities, stones and broken grains in the material effectively.
5XFJ-40A Vibration Grader Advantage
1.The vibration grader is used with 4 layers of sieves in parallel, and the sieving rate is higher, which can greatly increase the capacity while ensuring the effect of removing impurities;
2. Small footprint and space saving;
3. The whole machine has compact structure, simple operation and good stability.
Application
This vibration grader is suitable for various materials to removing broken grains.
Specification
Name | Model | Sieve Surface Area (mm) |
| Capacity (T/H) | Weight (kg） | Overall Size L x W x H (mm) | Remark | |
Seed | Grain | |||||||

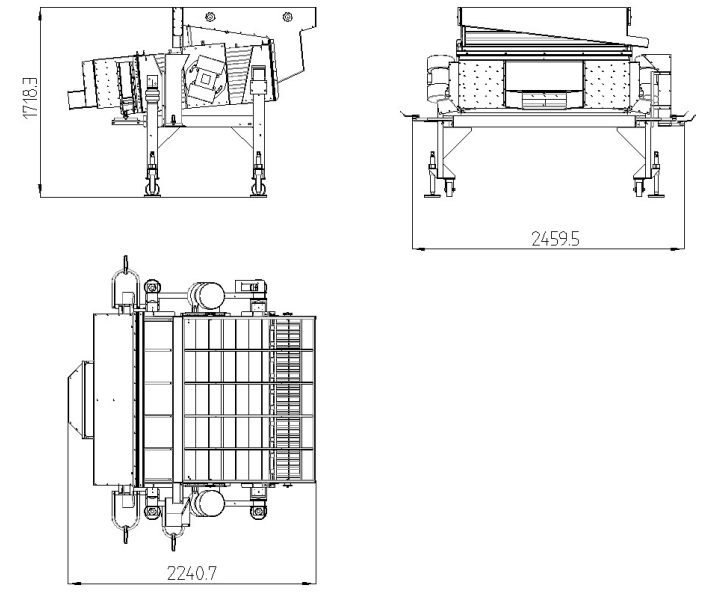

Vibration Grader(with extra sieve for removing large impurities) | 5XFJ-40A | 1455ⅹ1200 | 1.1 | 15-22 | 20-40 | 1080 | 2241ⅹ2459ⅹ1786 (single machine) | used with 40Z |
6643ⅹ2630ⅹ3547 （combination with 40Z） | ||||||||
Vibration Grader(without extra sieve) | 5XFJ-40 | 1455ⅹ1200 | 1.1 | 15-22 | 20-40 | 1000 | 2132ⅹ2391ⅹ1591 (single machine) | used with 40ZA |
6543ⅹ2715ⅹ3547 （combination with 40ZA） | ||||||||
Combination application

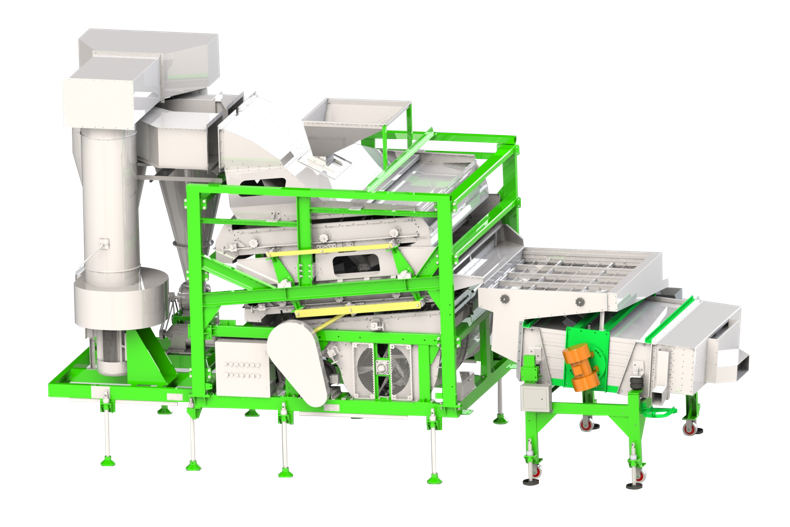

5XFZ-40Z Double Gravity Table Cleaner & 5XFJ-40A Vibration Grader combination

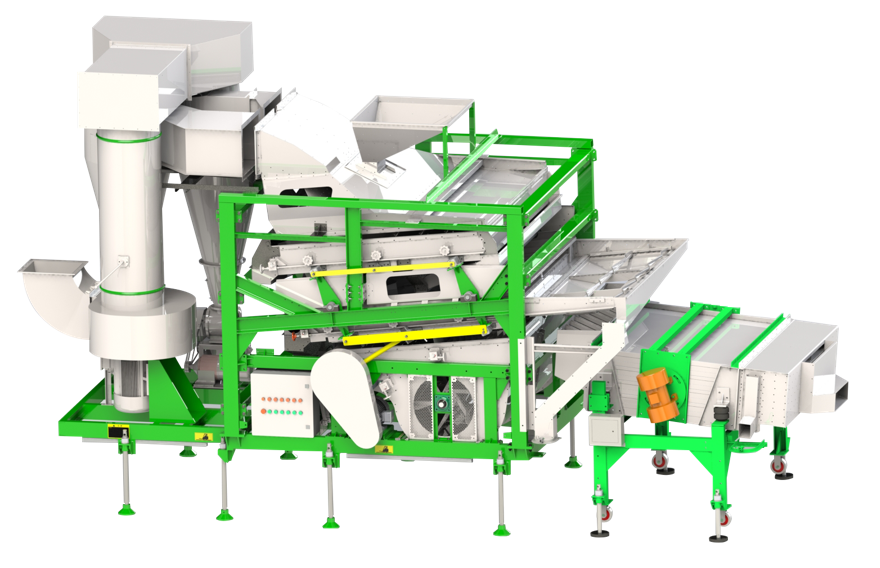

5XFZ-40ZA Double Gravity Table Cleaner & 5XFJ-40 Vibration Grader combination
